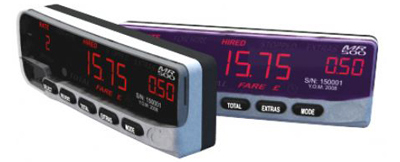

The MR500 Series is the latest taximeter to enhance our product
range and it is unlike any of our other taximeters you have seen.
Its unique design was the result of extensive consultation with
taxi industry professionals.
The Series consists of black and purple, with blue and silver to be
added in the near future. It's sleek design compliments any taxi,
giving a vibrant look to your interior. It's light, yet robust and has a choice of fittings and is user- friendly.
The MR500 is designed to the latest European Standard being the first taximeter to be tested to
the Measurement Instruments Directive (MID) in the UK. The quality of the taximeter is assured
as it is manufactured to the International Quality Standard ISO9001. The Series is backed
by 2 years manufacturer's warranty.
• Flexible tariff capabilities • Automatic daylight saving times • Highly accurate internal clock
• Full calendar clock control (optional) • Highly flexible tariff system • Optional manual over-ride
• Two sets of management totals (One resettable, one permanent as per MID)
• Display brightness control • Alarm clock feature • Pulse check mode (without breaking seals)
• Speed alarms (2) - gives audible alarm when preset speed is exceeded
• Auto disable - can be set to 'shut down' at a preset date • Audible musical sounder (can be turned off)
• Integral lamp drives; 21W x 2 and 6W x 4 • Low standby current (<20mA) • Flexible sealing options
• Printer compatible • Simple installation and no maintenance • User friendly
• Engineered and built in the UK • Size 155 x 50 x 25mm • Mass: 350g • Voltage: 12V Nominal (9V-16V)
• Temperature Range: • -10°C to +85°C (Operating) -40°C to +85°C (Storage) • Supply fuse rating: 10A
• Power consumption (excluding external lamps or signs): 190mA (typical) • Standby power consumption <20mA

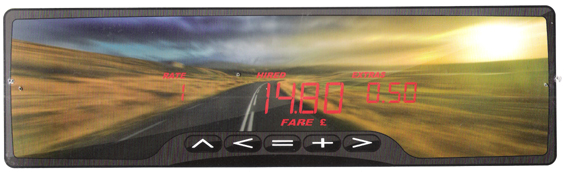

M500 VIEW
The MR500 View is the latest taximeter to enhance the
MR500 taximeter series. It is unlike any of our other taximeters
you have seen. Its stylish design will enhance any taxi interior.
The MR500 View is designed to the latest European Standard (MiD).
The quality of the taximeter is assured as it is manufactured to
the International Quality Standard ISO 9001:2008. The MR500 View
is backed by 2 years manufacturer's warranty and is Available from any authorised Cygnus dealer.
• Flexible tariff capabilities • Automatic daylight saving times • Highly accurate internal clock
• Full calendar clock control (optional) • Highly flexible tariff system • Optional manual over-ride
• Two sets of management totals (One resettable, one permanent as per MID)
• Display brightness control • Alarm clock feature • Pulse check mode (without breaking seals)
• Speed alarms (2) - gives audible alarm when preset speed is exceeded
• Auto disable - can be set to 'shut down' at a preset date • Audible musical sounder (can be turned off)
• Integral lamp drives; 21W x 2 and 6W x 4 • Low standby current (<20mA) • Flexible sealing options
• Printer compatible • Simple installation and no maintenance • User friendly
• Engineered and built in the UK • Voltage: 12V Nominal (9V-16V) • Supply fuse rating: 10A
• Temperature Range: • -10°C to +85°C (Operating) -40°C to +85°C (Storage)
• Power consumption (excluding external lamps or signs): 190mA (typical) • Standby power consumption <20mA

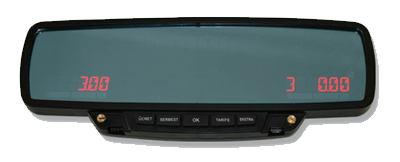

Tetas A1 Rearview Mirror Meter
Fully compatible with printer, 64 fully independent and smart
tariffs automatically managed by the time, date, distance,
fare amount, self-powered clock/calendar, 45 counters for
driver's and owner's accountancy, fully programmable
and large memory capacity
• 6 Tariff options • 4 Manual programmes • 63 Smart and fully indipendent Tariffs
• Peripheral printer connections • Communications Ports Internal COM1 and COM2
• Operative Firmware Upgradable firmware on Flash • Power Outputs: 1 Roof Light 25 Watts
• Transducer Mechanical Hall Effect or Internal adapter for electronic speedometer up to 100.000 l/km
• 4 Programmable power outputs 5 Watts • 4 Input/Output TTL levels • Totalizator Mode Dataflash 1Mb
• Dimension (WxHxD mm) 28 x 8,5 x 2,5 • Weight Gr. 350 ca. • Power Supply From 8,5 to 16 Volts
• Displays Fare counter: 6 Digits Red High-Luminosity Led • Extra counter: 5 Digits Red High-Luminosity Led
• Illuminated Front Text 1 Digit tariff index • Temperature From -15 to 70°C • Relative Humidity 95%
• Mechanical Strenght 3 g • Distance Unit From 10 cm. to 6553 meters • Step 10 cm.

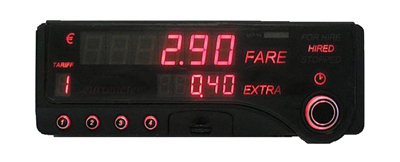

Autocab TM1000
Fully compatible with printer, 64 fully independent and smart
tariffs automatically managed by the time, date, distance,
fare amount, self-powered clock/calendar, 45 counters for
driver's and owner's accountancy, fully programmable
and large memory capacity
• 6 Tariff options • The Autocab Episilon TM 1000 Taxi meter • Up to 32 different tariffs can be programmed
• Various Mounting Options Available • Light, Compact and Highly Visible Even in Bright Sunlight
• 12V Auto Switched Output for Roof Light/Sign • One year FULL Manufacturers Warranty
• Real time clock / calendar control, (meter will switch automatically to appropriate tariff)
• Superb Value for the Cash Conscious Cabbie!
